OTC12S

Del Medical OTC12S System




Overhead tube crane system with color touch display










Reliable Versatility
The OTC12S Radiographic System delivers enhanced patient comfort and optimized workflow. Precisely designed to withstand high volume throughput in hospital radiology departments, medical imaging centers and large orthopedic facilities with the need to perform a broad range of radiographic studies.



OTC12D

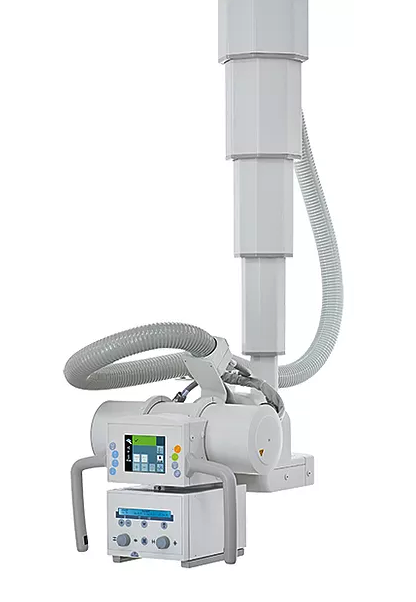

Flexible Operation
The OTC12 tube crane highlights a color touch display which displays tube angulation and SID values. Color-coded movement identification buttons provide optimal precision when setting up views. Peaceful, effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers exceptional vertical movement of 71” (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight bearing and recumbent table top exams.

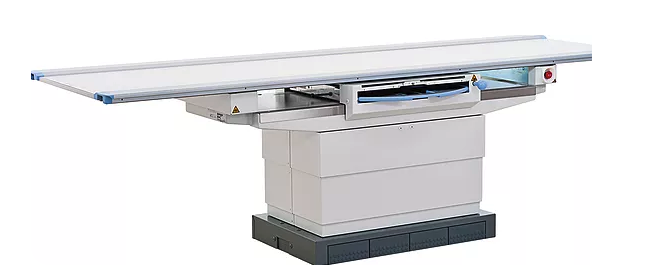

RAD TC Table
Elevating Table
The RAD TC is a versatile elevating table with four-way float and motorized height adjustment. Table locks and height adjustments are controlled via footswitch. It has a patient weight capacity of 617 lbs (280 kg)






OTC12D

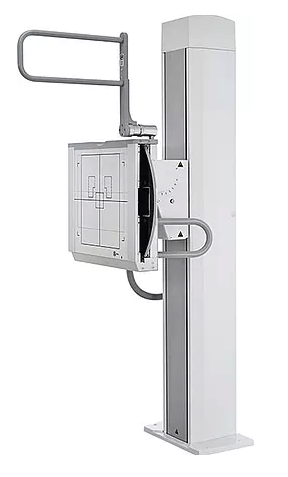

Tilting Wall Stand
The tilting WS04 wall stand accommodates nearly all radiographic procedures, including upright and seated applications. Technologists can expose difficult views by utilizing its tilting functionality, +90° to -20°. Its receptor effectively lowers to the floor and allows exposures of patients up to 6ft.-1in. (190 cm). All movements are precisely counter balanced to permit smooth vertical travel.










Del Medical OTC18T

Outstanding Image Quality and Reduced Patient Dose

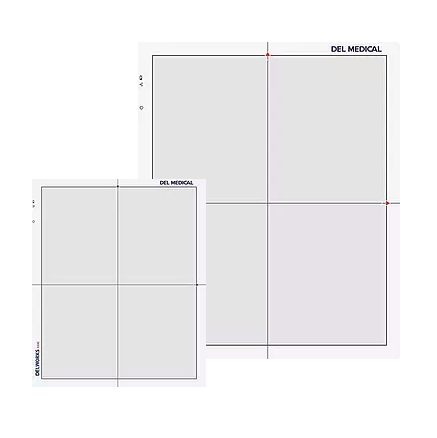

DELWORKS is a powerful image acquisition and processing software featuring a friendly single-user interface that provides sophisticated and speedy medical imaging. DELWORKS E-Series DR detectors offer brilliant, low dose imaging through the use of Cesium Iodide (CsI) scintillators.
DelWorks E-Series DR









Specifications

Tube Crane

Vertical telescope travel range: 70.8" (1800mm) with minimum 32.7" (830mm) focal spot floor distance with a 9' ceiling height
Longitudinal travel range: Standard 14' rail included, 136.2" min. (3460mm) With optional rail extensions: 219.9" max (5585mm)
Transverse travel range: STD 10' Bridge with 9.8' (3m) transverse carriage: 86.6" min. (2200mm) With 13' bridge & 13.1' (4m) transverse carriage: 139.7" max.(3550mm)
Longitudinal detent positions: Configurable during installation
Tube rotation range: Horizontal axis, -120°, +120°
Detent positions at -90°, 0°, +90°
Tube rotation range: Vertical axis, -182°, +154°
Detent positions at -180°, -90°, 0°, +90°
Weight: Approximately 831 lbs. (377 kg) with tube & collimator
Power Requirements: 110/240 Vac. 50/60 Hz, 700 VA

RAD TC Elevating Table

Patient load capacity: 563 lbs. (256 kg)
Table base length: 32.3" (82 cm)
Table top length: 94.5" (240 cm)
Table top width: 31.5" (80 cm)
Table top movement: Longitudinal, ± 18.9" (48 cm)
Transverse, ± 5.5" (14 cm)
Power requirements: 120 VAC or 230/240 VAC

WS04 Tilting Wall Stand

Receptor tilt range: +90°/ 20°
Height: 83" (211 cm)
Depth at 90° tilt: 36.7" (93.3 cm)
Width (with handles): 30" (76 cm)
