DelWorks EDR System

DelWorks EDR System
An intuitive and powerful DR retrofit system featuring wireless lightweight detectors




Smart and User-Friendly
DELWORKS is a powerful image acquisition and processing software featuring a user-friendly interface that provides sophisticated and speedy medical imaging. Designed with complex system automation, DELWORKS aims to simplify the examination process by making the difficult decisions for you.

Its advanced anatomical programming and image processing algorithms help optimize technologist productivity. DELWORKS strives to minimize human error and unwanted repeat exams to give technologists high quality images at a lower dose, with every exposure.



Del Medical EDR SeriesAcquisition and Processing Software

Pre-exposure display of patient and procedureinformation, X-ray generator exposure factors, status and control functions integrated in a single display screen

Exam-specific image processing algorithms automatically optimize images based on selected patient anatomy

Enhanced image processing parameters. APR specific default values and manual adjustment, if desired

Image rotation in 90° steps, horizontal mirroring, automatic and manual image cropping to collimated area

Easy verification and correction of image laterality and patient orientation

Intuitively add orientation markers and text comments directly to aquired images (pre-defined or free text)

Detailed histograms of pixel density User selection of modified LUT (Look-Up Table) based on various exam types

Manual adjustment of the LUT, window and level

Effectively manage rejected images









Premium Options Available in Single, Dual, or Multi-Detector Applications


Del Medical EDR Series

Grid Cabinet with Tray
The cassette/detector cabinet can be added to expand use to mobile, overhead, and floor mount system configurations.

Del Medical EDR Series

Table Side Handgrips
These sturdy handgrips can be mounted along the entire length of both sides of the table top to enhance patient safety.

Del Medical EDR Series

Lateral Cassette Holder
This adjustable holder can be mounted alone both sides of the table top allowing for access to a variety of cross-table lateral views.

EasyConnect
DELWORKS E-Series Wireless Detectors feature EasyConnect — an Auto Exposure Detection (AED) technology that keeps the detector in a standby mode, awaiting exposure from any X-ray source. Once an exposure is detected it instantly capatures the X-ray image and transmits it wirelessly to the system workstation

Del Medical EDR SeriesAnytime, Anywhere

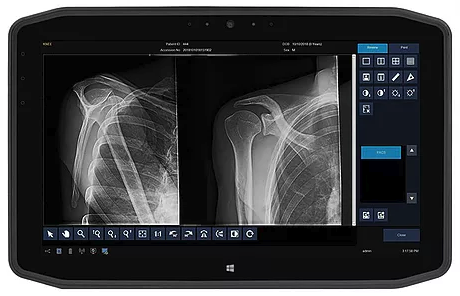

The DELWORKS FIT Portable Tablet Workstation aims to maximize the portability and efficiency of the DELWORKS software — utilizing it anytime, anywhere.

All of the excellent user-friendly features of the DELWORKS desktop software are beautifully translated to an able-bodied tablet PC, capable of withstanding even the harshest radiology (or non radiology) environments. This handheld workstation features wireless connectivity, plenty of storage space, and a powerful Intel® Core™ i5 processor to perform rapid and productive patient side studies, without limitations.

Existing analog mobile and portable x-ray devices, radiographic rooms, and other remote or distant locations can greatly benefit from the enhanced adaptability provided by the DELWORKS FIT





Del Medical EDR SeriesQuality Assurance

The DR QC Phantom allows comprehensive quality assurance testing for DR Detectors and associated software. The phantom enables seven quality assurance assessments for monthly and semi-annual evaluation, including exposure linearity and sensitivity, high and low contrast reproducibility, artifact and residual image detection, image resolution, collimator beam alignment, measurement tool accuracy, and display jitter QA testing.






Specifications

Detectors E14Cw E14Ce E24Cw E17C
Detector size: 14 x 17" (35 x 43 cm) 14 x 17" (35 x 43 cm) 24 x 30 cm 17 x 17" (43 x 43 cm)
Scintillator: Cesium Iodide (CsI) Cesium Iodide (CsI) Cesium Iodide (CsI) Cesium Iodide (CsI)
Active area: 13.8" x 16.8" 13.8" x 16.8" 8.7" x 11.2" 16.9" x 16.9"
Pixel matrix: 2400 x 2880 2400 x 2880 1560 x 1920 2880 x 2880
Pixel pitch: 148 μm 160 μm 148 μm 148 μm
Dimensions: 15" x 18" x 0.6" 15" x 18" x 0.6" 10.6" x 13" x 0.6" 19.7" x 19.3" x 1.7"
Weight: 6.17 lbs. w/battery 6.8 lbs. w/battery 3.5 lbs. w/battery 27.5 lbs.
Bit depth (A/D): 16 bit A/D 16 bit A/D 16 bit A/D 16 bit A/D
Image display: 3-6 sec. < 6 sec. 3-6 sec. 4 sec.
Cycle time: 9 sec. 9 sec. 9 sec. 6 sec.
Exposure window: Up to 3.2 sec. Up to 3.2 sec. Up to 3.2 sec. 1 - 3.2 sec.
Auto Exposure Detection: Yes Yes Yes No
WiFi 802.11a/b/g/n
2.4GHz/5GHz
802.11a/b/g/n
2.4GHz/5GHz
802.11a/b/g/n
2.4GHz/5GHz
N/A
Drop sensor(s): Yes Yes, mechanical Yes No
Battery type: Li-Ion 3.35Ah 7.4V Li-Ion 3.35Ah 7.4V Li-Ion 3.35Ah 7.4V N/A
Limiting resolution: 3.5 lp/mm 3.5 lp/mm 3.5 lp/mm 3.5 lp/mm
DQE: 70% @ 0 lp/mm
51% @ 1 lp/mm
42% @ 2 lp/mm
29% @ 3 lp/mm
70% @ 0 lp/mm
51% @ 1 lp/mm
42% @ 2 lp/mm
29% @ 3 lp/mm
37% @ 0 lp/mm
25% @ 1 lp/mm
17% @ 2 lp/mm
7% @ 3 lp/mm
65% @ 0 lp/mm
52% @ 1 lp/mm
42% @ 2 lp/mm
25% @ 3 lp/mm
MTF: 61% @ 1 lp/mm
31% @ 2 lp/mm
15% @ 3 lp/mm
61% @ 1 lp/mm
30% @ 2 lp/mm
14% @ 3 lp/mm
54% @ 1 lp/mm
20% @ 2 lp/mm
7% @ 3 lp/mm
64% @ 1 lp/mm
32% @ 2 lp/mm
17% @ 3 lp/mm
Data Sheet Data Sheet Data Sheet Data Sheet
