OTC12D

Del Medical OTC12D System


Overhead tube crane system with LCD touchscreen










Reliable Versatility
The OTC12D Radiographic System delivers enhanced patient comfort and optimized workflow. Precisely designed to withstand high volume throughput in hospital radiology departments, medical imaging centers and large orthopedic facilities with the need to perform a broad range of radiographic studies.



OTC12D
Flexible Operation
The OTC12 tube crane highlights a color touch display which displays tube angulation and SID values. Color-coded movement identification buttons provide optimal precision when setting up views. Peaceful, effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers exceptional vertical movement of 71” (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight bearing and recumbent table top exams.







OTC12D
Auto-Collimation
Accelerates patient positioning and reduces radiation exposure by automatically selecting the proper field-of-view for each body part. This feature is available through the DelWorks DR acquisition software’s pre-programmed APR settings.








EV800 Table
Elevating Table

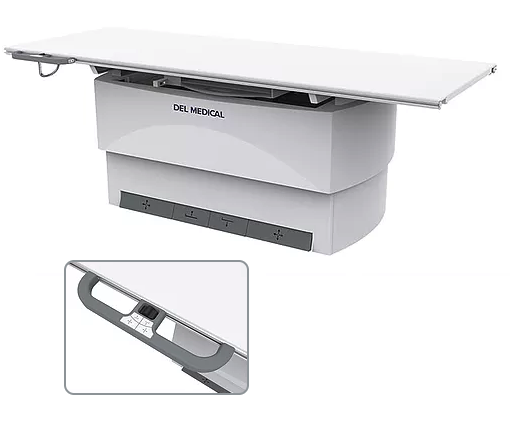

The durable EV800 elevating four-way float top table delivers outstanding safety and usability. Featuring an exclusive four-point lift system and exceptionally quiet motor-drive, its smooth, scratch resistant table top lowers to a height of just 22” to ensure stress-free patient transfers and adjustments. Offering a high patient weight capacity of up to 800lbs (363 kg), stable continuous movement is possible through conveniently placed recessed foot treadles and table-side controls, suitable for increasing technologist performance and satisfaction.

EV800 and Accessories






Wall Stand Options

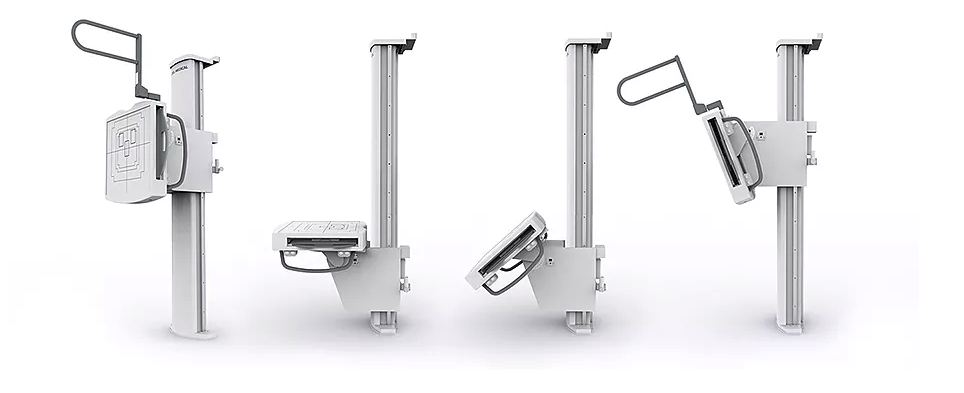

Choose the wall stand that fits your needs! The OTC12D System can be configured with a conventional vertical wall stand or an advanced tilting wall stand. Both deliver ergonomic designs intended to speed up workflow and enhance patient safety.
OTC12D
VS300 Wall Stand
The reliable VS300 wall stand utilizes electromagnetic ‘fail safe’ locks to maintain operator confidence throughout the imaging procedure. Full receptor movement to the floor, patient-side handgrips and optional overhead handgrips promote efficient upright exams without placing unnecessary strain on the patient. Designed for convenience, the VS300 technologist handgrip permits relaxed vertical travel by angling with the operator’s wrist as the image receptor is raised or lowered.
VS300 Wall Stand

VT300 Wall Stand
The VT300 wall stand features a tilting image receptor, promoting comfort and precision for standing or seated examinations. Every adjustment is precisely counterbalanced to allow smooth operation with light effort applied by the technologist. This makes the VT300 accommodating to all users regardless of size or strength.
VT300 Wall Stand


 Del Medical OTC18T Wallstands

Del Medical OTC18T



Optional Rotating Tray
The easy-to-use rotating tray enables manual rotation of the DR detector for use inside all Del manufactured tables and wall stands. Stable one-handed operation supports fast portrait to landscape positioning without ever removing the detector from the tray. Fully extended steel slides activate locking mechanisms to assure detector protection when loading and unloading. Designed to accommodate a wide array of ISO 14 x 17” cassette-sized detectors.







Del Medical OTC18T

Outstanding Image Quality and Reduced Patient Dose
DELWORKS is a powerful image acquisition and processing software featuring a friendly single-user interface that provides sophisticated and speedy medical imaging. DELWORKS E-Series DR detectors offer brilliant, low dose imaging through the use of Cesium Iodide (CsI) scintillators.
DelWorks E-Series DR









Specifications

Tube Crane

Vertical telescope travel range: 70.8" (180 cm) with minimum 32.7" (83 cm) focal spot floor distance with a 9' ceiling height
Longitudinal travel range: Standard 14' rail included, 136.2" min. (3460mm) With optional rail extensions: 219.9" max (5585mm)
Transverse travel range: Standard 10' Bridge with 9.8' (3m) transverse carriage: 86.6" min. (2200mm) With 13' bridge & 13.1' (4m) transverse carriage: 139.7" max.(3550mm)
Longitudinal detent positions: Configurable during installation
Tube rotation range: Horizontal axis, -120°, +120°
Detent positions at -90°, 0°, +90°
Tube rotation range: Vertical axis, -182°, +154°
Detent positions at -180°, -90°, 0°, +90°
Weight: Approximately 831 lbs. (377 kg) with tube & collimator
Power Requirements: 110/240 Vac. 50/60 Hz, 700 VA

EV800 Elevating Table

Patient load capacity: 800 lbs. (363 kg)
Table base length: 53" (135 cm)
Table base width: 25" (64 cm)
Table top movement: Longitudinal, ± 21.25" (54 cm)
Transverse, ± 4.5" (11.4 cm)
Variable height: 22.25" (56.5 cm) to 34.25" (87 cm)
Bucky travel: ± 8.5" (22 cm)
Table top length: 86.5" (220 cm)
Table top width: 36" (91 cm)
Weight: 563 lbs. (256 kg)
Power requirements: 120 VAC or 230/240 VAC
Options: - 78" (198 cm) table top length
- 32" (81 cm) table top width
- Lateral cassette holder
- Table-side patient handgrips
- Rotating cassette tray

VT300 Tilting Wall Stand

Receptor tilt range: +90°/ 20°
Vertical travel range, vertical receptor: 15.5" (39.4 cm) to 71.1" (180.6 cm)
Vertical travel range, +90° receptor: Minimum 25.5" (64.8 cm)
Height: 83.1" (211 cm)
Depth, vertical receptor: 30" (76 cm)
Receptor width: 24.6" (62.5 cm)
Receptor height: 26.5" (67.3 cm)
Weight: 765.5 lbs. (347.2 kg)
Weight, without counterweights: 368.5 lbs. (167 kg)
Options: - 8" (20 cm) extension box
- Overhead patient handgrips
- Rotating cassette tray
