Del Medical VT300

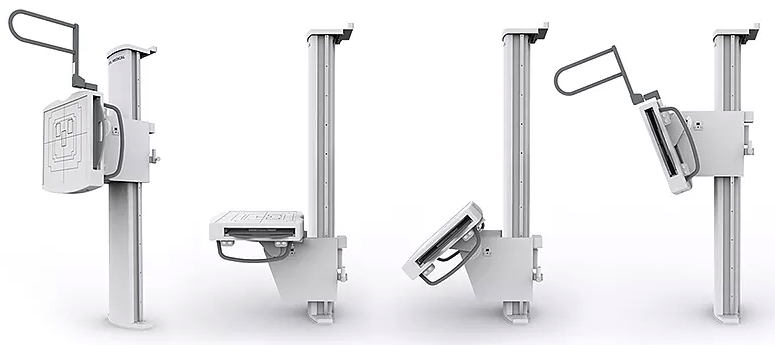

The Del Medical VT300 wall stand features a tilting image receptor which allows effortless full body examinations. This wall stand delivers advanced maneuverability making it the ideal choice for any imaging environment including hospitals, medical imaging facilities, and private practices.


Key benefits of the Del Medical VT300 include:
  • Available with standard cassette/rotating tray, or 17 x 17” fixed detector mounted inside
  • Simple, smooth operation
  • Silent heavy-duty motor drive for fast efficient elevating action
  • Electromagnetic control buttons permit easy one-handed operation
  • All movements are counterbalanced


Receptor tilt range: +90°/ -20°
Vertical travel range, vertical receptor: 15.5" (39.4cm) to 71.1" (180.6cm)
Vertical travel range +90° receptor: Minimum 25.5" (64.8cm)
Height: 83.1" (211cm)
Depth, vertical receptor: 30" (76cm)
Receptor width: 24.6" (62.5cm)
Receptor height: 26.5" (67.3cm)
Weight: 765.5 lbs. (347.2kg)
Weight, without counterweights: 368.5 lbs. (167kg)
Options: 8" (20cm) extension box
Overhead patient handgrips
