Oasis 1.2T

The Highest High Field Open MRI

Overview

Oasis 1.2T MRI system sets a high standard for patient-centric care. A unique achievement in high-performance imaging, the Oasis truly open architecture features advanced magnet design, Zenith RF Technology and robust clinical capabilities to achieve high throughput diagnostic performance.

With an unobstructed viewing angle and the industry’s most accommodating patient table, no other MRI system enables you to capture and retain as broad of a patient demographic as Oasis. Even the most challenging patients can be handled with confidence, without compromising on safety, performance, or efficiency.

Offering unmatched patient comfort, rapid workflow, the latest clinical capabilities, and a 99% uptime guarantee, Oasis 1.2T completes your MRI portfolio ensuring all patient referrals can be handled with the best diagnostic results available.

SynergyDrive Workflow
Fujifilm’s SynergyDrive is the latest in complete efficiency and workflow engines to ensure the fastest patient throughput, best patient comfort and highest quality imaging.

Patient Comfort

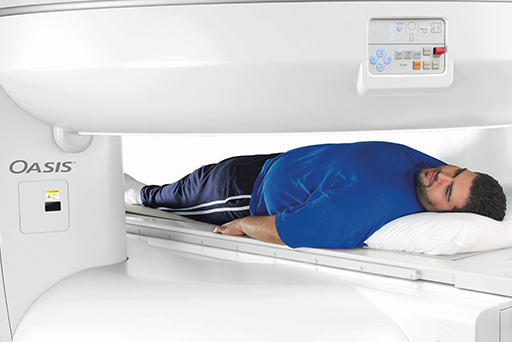

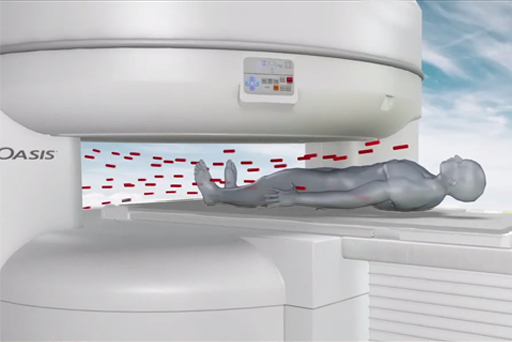

OASIS supports up to 660 lb patients on an 82 cm wide table. A true open design, patients have a 270 degree unobstructed view for maximum comfort.

Image Quantification

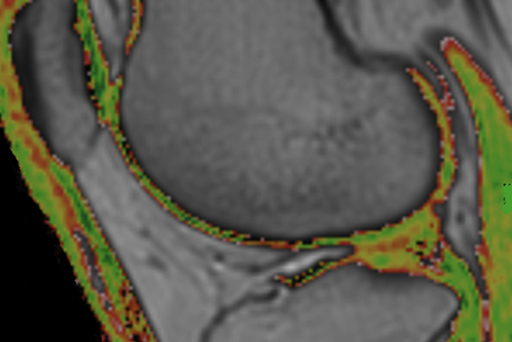

T2 RelaxMap provides for quantification of actual T2 values displayed in a color overlay that depicts subtle tissue properties and anomalies. Ideal for orthopedic studies and the depiction of articular cartilage.

Non-Contrast Imaging
VASC-ASL enables excellent depictions of vasculature without a contrast agent. An MRA alternative for patients with compromised renal function in renal artery and portal vein imaging.

NeuroDrive

View More Images

×

NeuroDrive

1 / 7

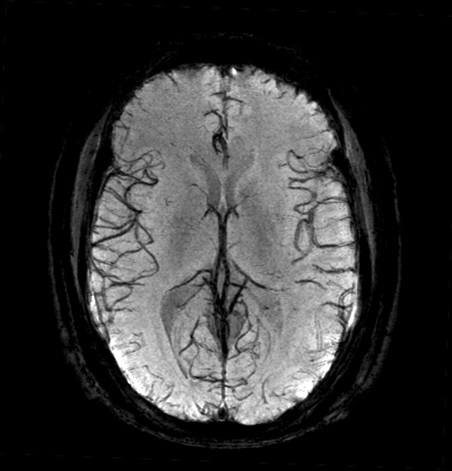

BSI

NeuroDrive

2 / 7

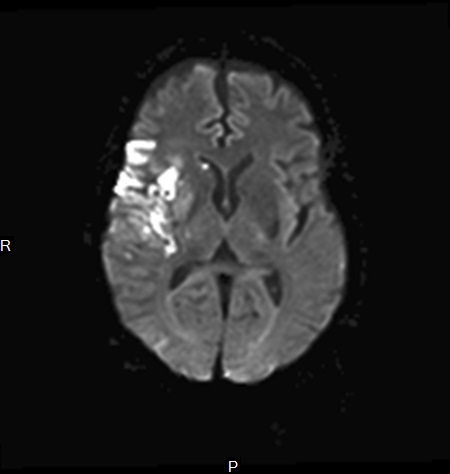

with DWI b1000

NeuroDrive

3 / 7

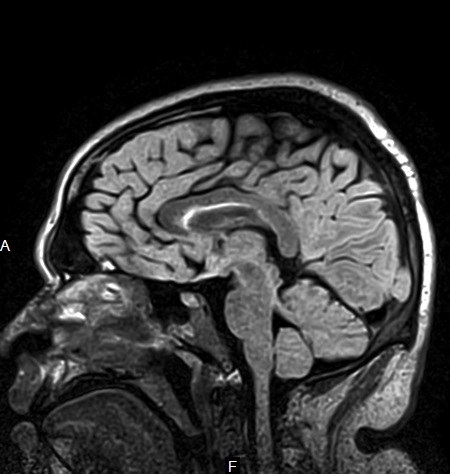

with isoFSE T2 FLAIR

NeuroDrive

4 / 7

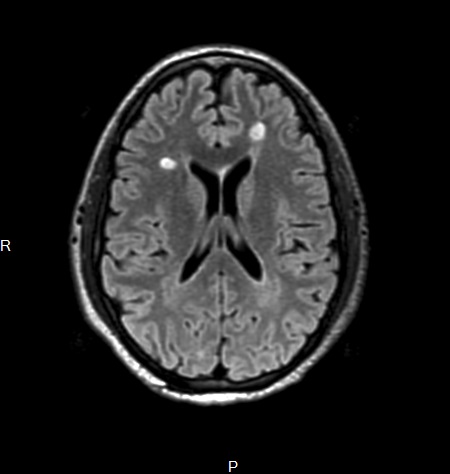

with isoFSE T2 FLAIR MPR

NeuroDrive

5 / 7

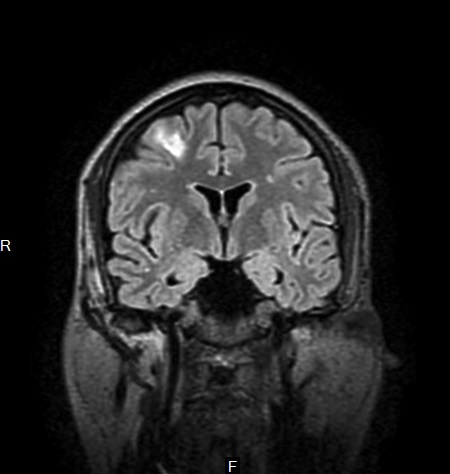

with isoFSE T2 FLAIR MPR

NeuroDrive

6 / 7

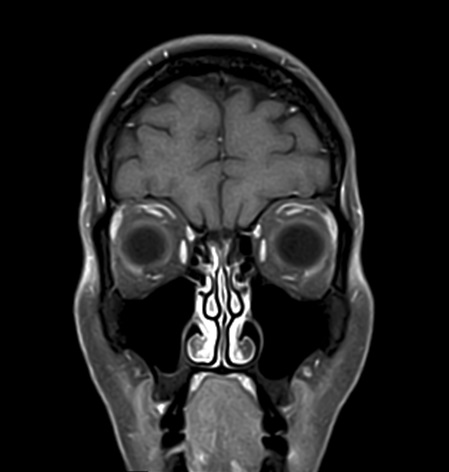

Orbits Thin Slice FatSat with Gad

NeuroDrive

7 / 7

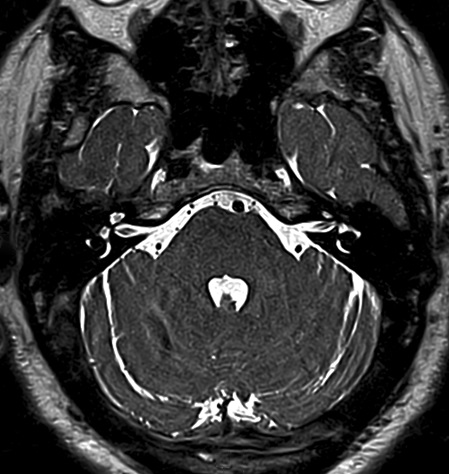

IAC Thin SLice T2FSE 3D

❮ ❯

Oasis provides the essential acquisition and post processing tools for high-quality imaging of the brain and spine.

High resolution, fast motion compensated visualization of anatomical structures for obtaining detailed images of the brain and nerve tissues with All Around RADAR, RAPID and ADAGE for the diagnosis of lesions and disorders

High resolution isotropic acquisitions using isoFSE can be reformatted into any plane or thickness for detailed evaluation

Physiological and quantitative analysis provided by DWI, DTI and Perfusion imaging that deliver insights into characteristic differences of normal and diseased tissue

SpineDrive

View More Images

×

SpineDrive

1 / 6

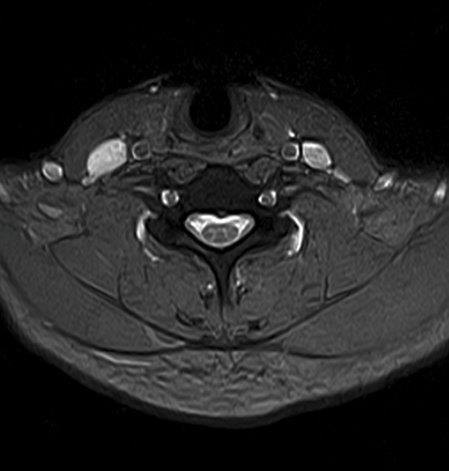

2D ADAGE

SpineDrive

2 / 6

T2 opFSE

SpineDrive

3 / 6

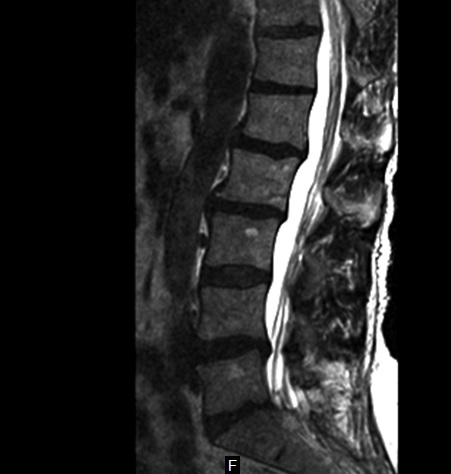

T2 isoFSE

SpineDrive

4 / 6

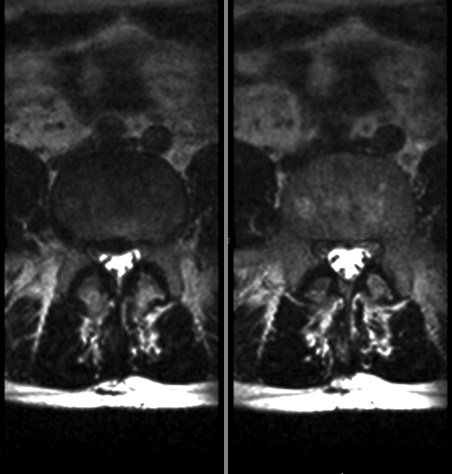

T2 opFSE MPR

SpineDrive

5 / 6

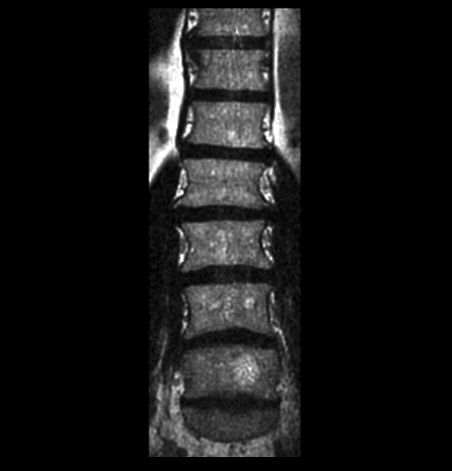

T2 opFSE MPR

SpineDrive

6 / 6

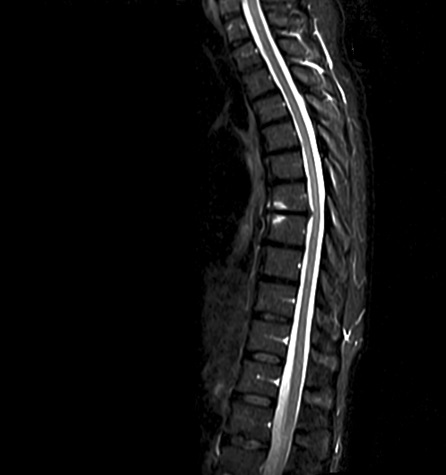

opFIR

❮ ❯

Patients come in different sizes and imaging the spine can be a challenge when trying to capture the entire anatomy. Fujifilm’s SpineDrive accounts for the natural shape of the spine and intuitively selects the appropriate WIT coil elements based on anatomical landmarks and imaging field of view for the best image quality and faster scan set up using the SynergyDrive Auto Element Selection.

Additional time saving features include:

• isoFSE – one 3D acquisition with unlimited orthogonal and oblique reformats


• Complete spine coverage with two acquisitions that can be seamlessly stitched


• With OASIS HOAST high field uniformity, a larger field of view is possible

VascularDrive

View More Images

×

VascularDrive

1 / 8

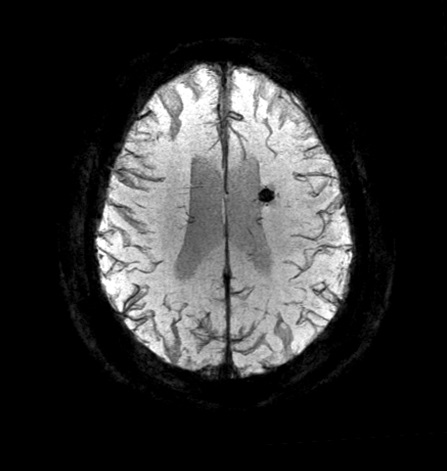

BSI

VascularDrive

2 / 8

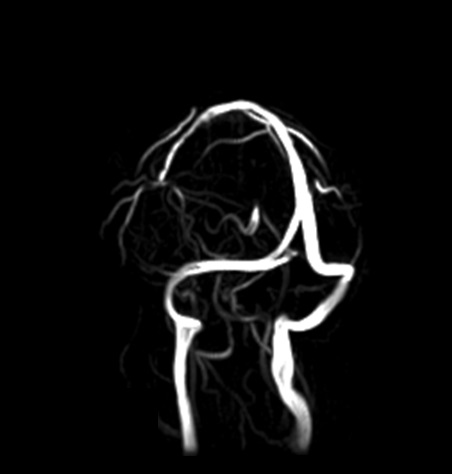

MRV 3D PC

VascularDrive

3 / 8

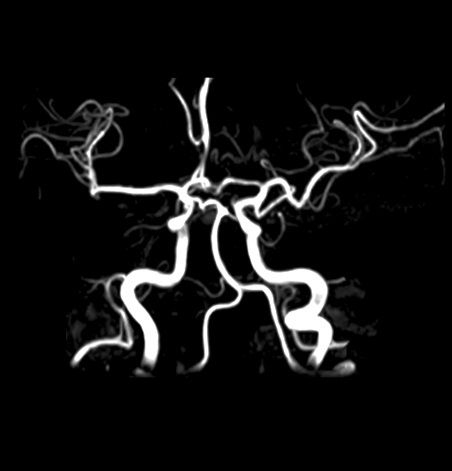

TOF MRA

VascularDrive

4 / 8

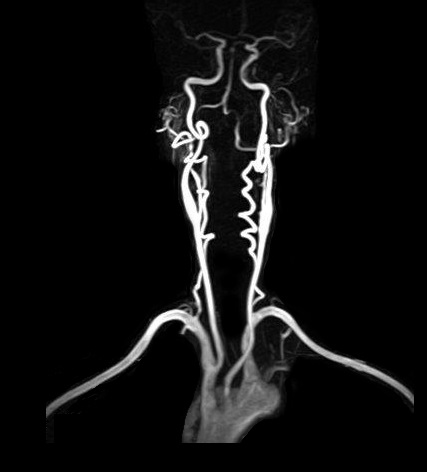

Carotids FLUTE

VascularDrive

5 / 8

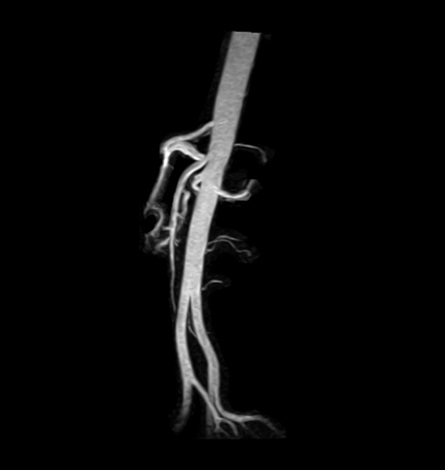

FLUTE SMA

VascularDrive

6 / 8

Hand/Fingers TRAQ

VascularDrive

7 / 8

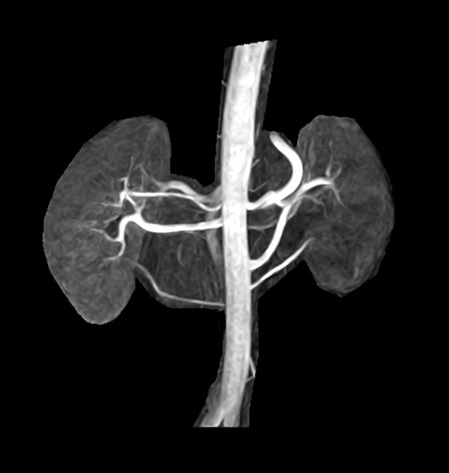

Renal VASC-ASL

VascularDrive

8 /8

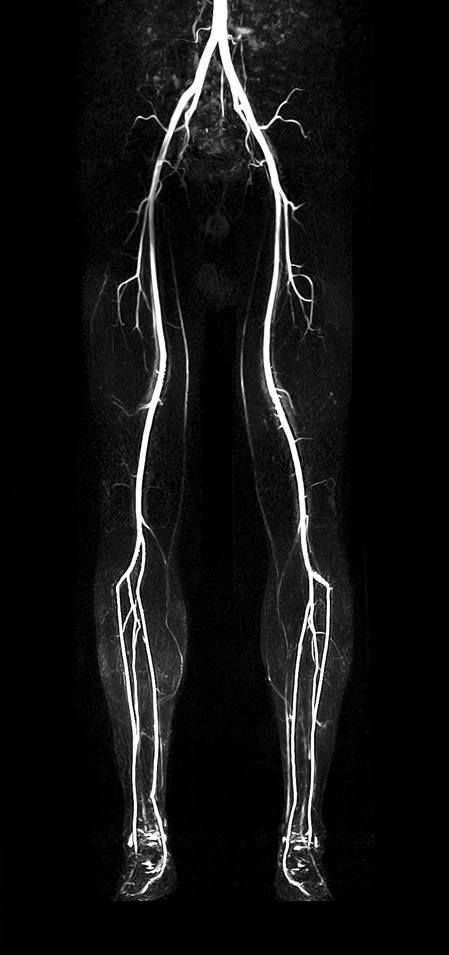

VASC-FSE

❮ ❯

Many factors including blood flow dynamics, bolus timing, and large FOV contribute to making vascular and cardiac imaging challenging even for the most experienced facilities. Oasis provides easy to implement features that deliver consistent results head to toe.

• Simplify bolus timed MRA with FLUTE and TRAQ


• Non-contrast MRA solutions, VASC-ASL and VASC-FSE, reduce costs and risk

BodyDrive

View More Images

×

BodyDrive

1 / 4

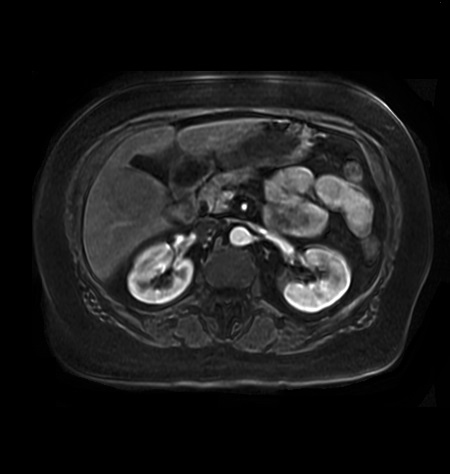

Dynamic TIGRE Arterial Phase

BodyDrive

2 / 4

FatSep Out-of-Phase

BodyDrive

3 / 4

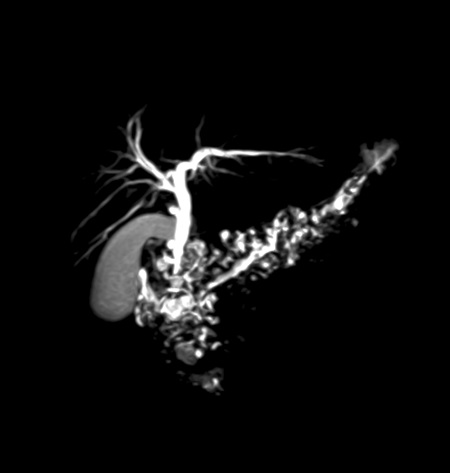

MRCP 3D Respiratory Gated

BodyDrive

4 / 4

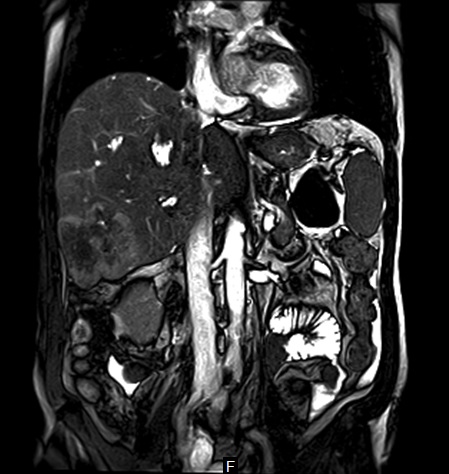

BASG Breath Hold

❮ ❯

Oasis delivers robust dynamic, diffusion weighted, and motion compensated imaging to aid diagnosis in a breadth of applications including liver, kidney, prostate and breast.

• Short breath-hold times with extended coverage for general body imaging with RAPID


• Extensive motion compensation techniques to reduce motion with the All Around RADAR suite of sequences
• TIGRE provides high temporal and spatial resolution with uniform fat suppression for dynamic imaging
• Body DWI for enhanced lesion detection

BreastDrive

View More Images

×

BreastDrive

1 / 4

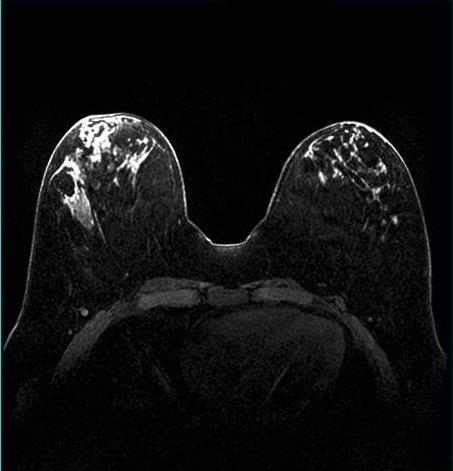

Axial T2 FatSat

BreastDrive

2 / 4

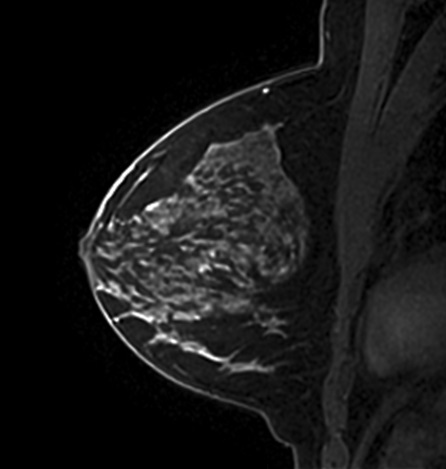

Sagittal TIGRE Post

BreastDrive

3 / 4

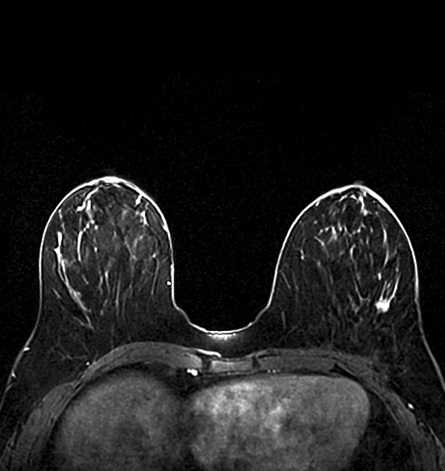

TIGRE 1st Post

BreastDrive

4 / 4

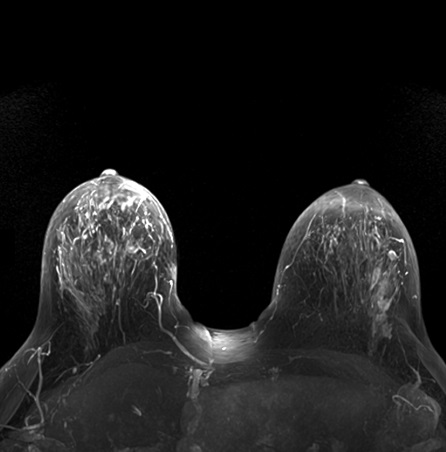

TIGRE PostMIP

❮ ❯

MR breast imaging is becoming increasingly important, requiring high spatial and temporal resolution dynamic sequences to improve diagnostic accuracy. Fujifilm’s BreastDrive provides efficient workflow capabilities:

• Fujifilm designed protocols meet ACR requirements


• TIGRE provides high resolution, dynamic acquisition with consistent fat saturation
• Auto-dynamic series subtraction and separation for each post contrast acquisition simplifies the complex timing of dynamic imaging
• Dynamic intensity curves at the MR console

ProstateDrive

View More Images

×

ProstateDrive

1 / 4

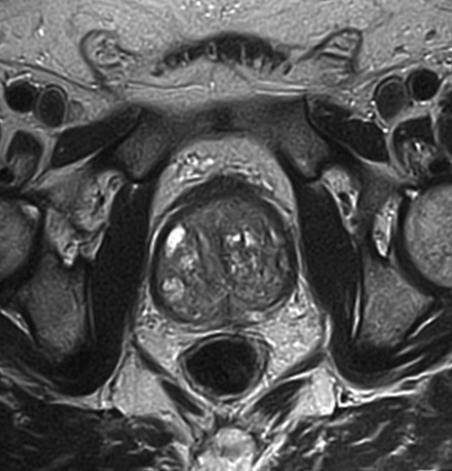

RADAR Axial

ProstateDrive

2 / 4

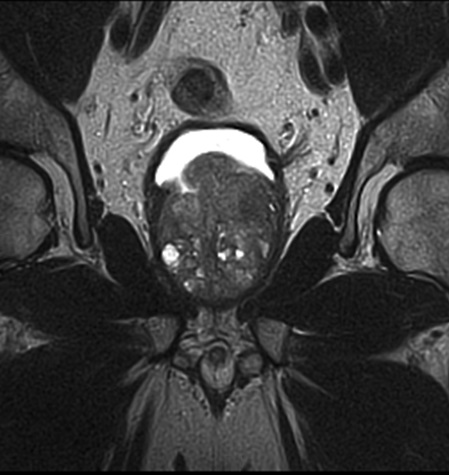

RADAR Coronal

ProstateDrive

3 / 4

RADAR Sagittal

ProstateDrive

4 / 4

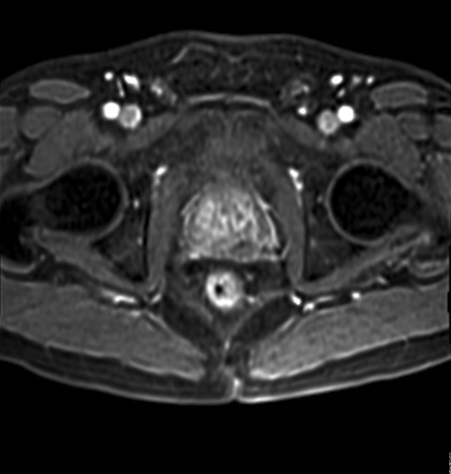

TIGRE

❮ ❯

Imaging of the prostate requires multi-sequence, multi-parameter fast scanning and efficient protocols to get the most out of the images. Fujifilm’s ProstateDrive accommodates for motion and facilitates dynamic imaging with key functionality:

• RADAR motion compensation


• TIGRE and RF Spoiled Gradient Echo sequences acquired in less than 10 seconds
• Multiple b-value DWI with adjustable NSA in a single acquisition eliminating multiple sequences
• Pi-RADS compliant

Pediatrics

View More Images

×

Pediatrics

1 / 4

RADAR T2

Pediatrics

2 / 4

RADAR T2 FSE

Pediatrics

3 / 4

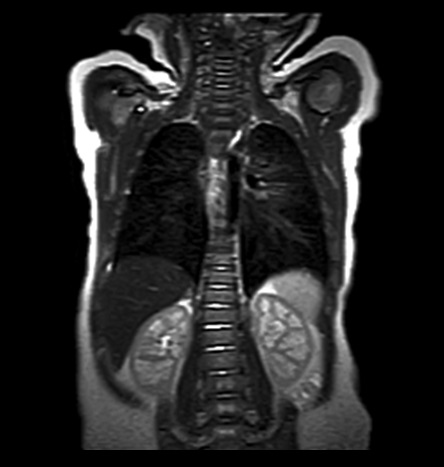

Single Shot T2

Pediatrics

4 / 4

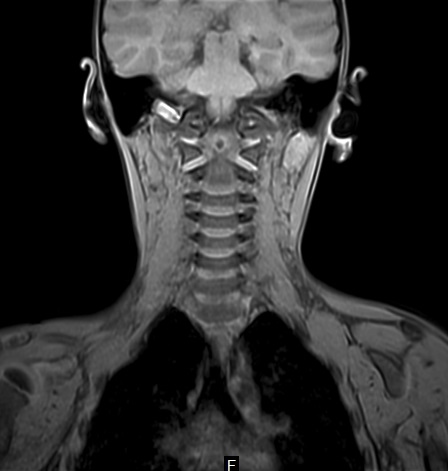

T1 RSSG 2D FatSep

❮ ❯

Oasis provides a more holistic approach to successful pediatric imaging. The child can be physically or emotionally supported during the scan with the unlimited horizontal access. With less need for sedation or anesthesia, patient safety as well as patient throughput is improved. Positioning at iso-center makes patients more comfortable leading to faster exams for the child and reassurance for parents or caregivers.

CardiacDrive

View More Images

×

CardiacDrive

1 / 4

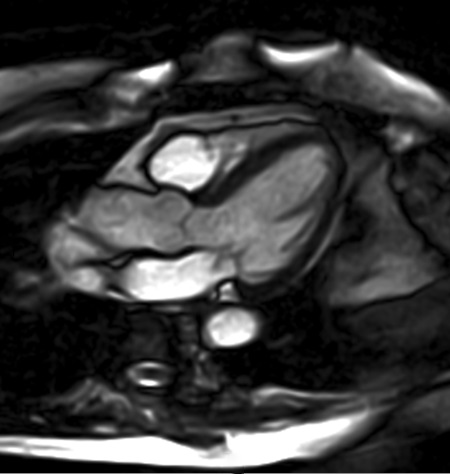

3 Chamber BASG Cine Retrospective Gating

CardiacDrive

2 / 4

4 Chamber BASG CINE Retrospective Function

CardiacDrive

3 / 4

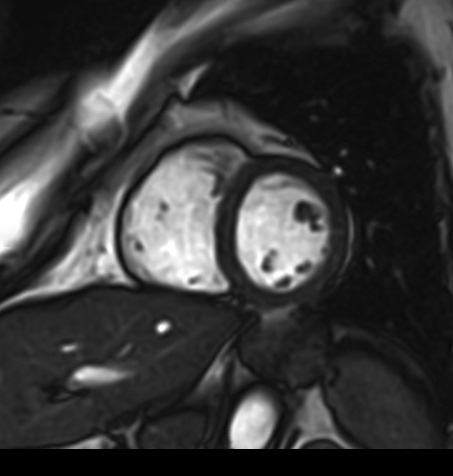

Short Axis Multislice MultiPhase Function

CardiacDrive

4 / 4

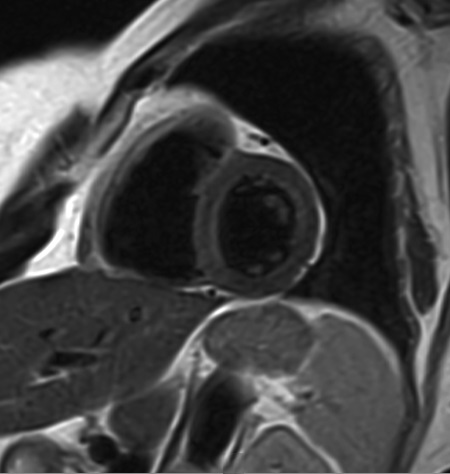

Sagittal T2DIR Morphology

❮ ❯

Dynamic gated imaging for cardiac studies, in combination with the wide variety of views, means cardiac imaging can be time consuming. Losing time on inefficient processes reduces the effectiveness of many departments. Fujifilm’s CardiacDrive minimizes many of the constraints traditional imaging poses.

• Wireless gating enables faster scan preparation and “At the gantry” cardiac gating vector selection ensures the strongest signal is used for gating
• Interactive Scan Control (iScan) facilitates accuracy and reproducibility for quick simplified slice positioning
• TI survey allows easy determination of the correct TI time
• Navigator echo enables cine acquisitions for non-compliant patients
• Navi Slice adjusts slice position with diaphragm movement to minimize mis-registration

OrthoDrive

View More Images

×

OrthoDrive

1 / 4

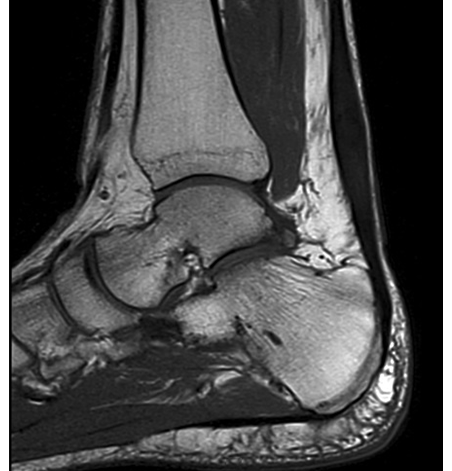

T1 opFSE

OrthoDrive

2 / 4

PD opFSE FatSat

OrthoDrive

3 / 4

T2 opFSE

OrthoDrive

4 / 4

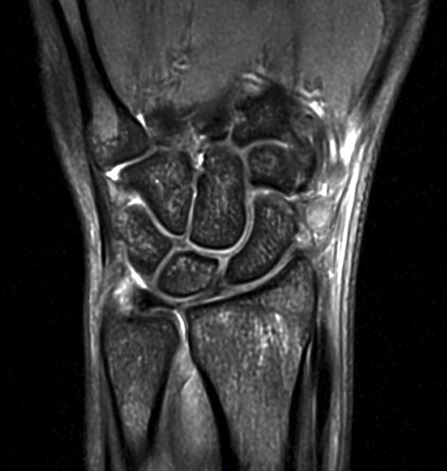

ADAGE 2D

OrthoDrive

4 / 4

ADAGE 3D

❮ ❯

Positioning is always a challenge for patients with orthopedic issues, and traditional imaging puts patients in unnatural positions.

Wide open architecture, dedicated coils, and lateral table shift provide ideal positions for orthopedic imaging. Unmatched table capacity and width, along with unobstructed views, provides accommodation for all patients, especially those with claustrophobia and obesity.

• Lateral table shift puts patient at iso-center for remarkable RF fat saturation
• Fujifilm’s Dixon technique, FatSep, provides multiple contrasts in one acquisition
• TI survey allows easy determination of the correct TI time
• Isotropic sequences (isoFSE) enables reformats into various planes and obliques for viewing intricate anatomy
• RADAR motion compensation reduces the need for re-scans from patient motion

High Homogeneity
HOAST (Higher Order Active Shimming Technology) enables exquisite RF fat saturation and excellent large FOV fat suppression in all planes with two levels of shimming.

Zenith System RF Coils
A powerful combination of multi-channel RF technology and Fujifilm exclusive Zenith RF coils, Zenith drives excellent image quality, seamless workflow, wide clinical capability and optimized patient comfort.

Motion Compensation
Industry-leading RADAR radial scan, motion compensating technique can be applied to most sequences and all body parts including Fujifilm exclusive TOF acquisitions.

Fat Supression Sequences
An alternative to fat saturation for robust fat suppression particularly useful when tissue susceptibility, magnetic field in-homogeneity or administration of contrast agents complicate other fat suppression methods.
