RadiForce GX340

3MP 54cm (21.3") MONOCHROME LCD MONITOR

Eizo GX340

3 megapixel high-resolution diagnostic monochrome monitor ideal for displaying an entire chest CR image. High-definition and multifunctional model featuring precise calibration compliant with the DICOM Part 14 standard.


Features

  • Environmentally-Friendly LED Backlight
    • By utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.
  • Displaying with Separate Brightness Levels
    • For monochrome monitors, Hybrid Gamma function automatically distinguishes the medical images from the non-medical areas such as the tool palettes and displays each one at its optimum brightness. Decreasing the tool palette area's brightness leads to less eye fatigue.
      Accuracy in distinction may depend on how images are aligned.
      Viewer software compatibility verification is required.
  • Consistency with DICOM Part 14 Calibration
    • With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.
  • Diagnostic Precision with DICOM Part 14 Factory Adjustment
    • To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
  • Easy Calibration with Integrated Front Sensor
    • An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. Without having to connect and disconnect, an IFS performs QC tasks and does not interfere with the viewing area. This dramatically cuts monitor quality control workload and maintenance costs.
  • Presence Sensor for Power Savings
    • The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns.
  • 10-Bit Simultaneous Grayscale Display
    • 10-bit (1,024 tones) simultaneous grayscale display extends grayscale fidelity to the boundaries of human visual perception abilities and helps radiologists discern the finest nuances within an image.
  • Brightness Uniformity for a Steadier Image Across the Screen
    • The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.
  • Quick Brightness Stabilization for Instant Viewing
    • At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
  • Mode Selection for Optimum Viewing
    • Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
  • Wide Viewing Angles for Multiple People Use
    • Wide Viewing angles with minimal color shift when viewed from the side.
  • Brightness Stability Within Usage Time Guaranteed
    • EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
  • Versatile Positioning for Improved Operability
    • EIZO's highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
  • Customer Assurance with Medical Standards
    • The monitor meets the strictest medical, safety, and EMC emission standards.
  • Warranty with Safety and Trust
    • EIZO and its authorized distributors offer a five-year full warranty.


Specifications

Model Variations GX340-CL: Clear Base
GX340-CL-P: Pairin
Cabinet Color Black
Panel
Type Monochrome (IPS)
Backlight LED
Size 54 cm / 21.3"
Native Resolution 1536 x 2048 (3:4 aspect ratio)
Viewable Image Size (H x V) 324.8 x 433.1 mm
Pixel Pitch 0.2115 x 0.2115 mm
Display Colors 10-bit (DisplayPort) : 1,024 from a palette of 16,369 tones
8-bit: 256 from a palette of 16,369 tones
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 1200 cd/m2
Recommended Brightness for Calibration 500 cd/m2
Contrast Ratio (typical) 1400:1
Response Time (typical) 40 ms (on / off)
Video Signals
Input Terminals DVI-D (dual link) x 1, DisplayPort x 1
Output Terminals DisplayPort x 1 (daisy chain)
Digital Scanning Frequency (H / V) 31 - 127 kHz / 29 - 61 Hz
Frame synchronous mode: 29.5 - 30.5 Hz, 59 - 61 Hz
USB
Function 1 upstream, 2 downstream
Standard USB 2.0
Power
Power Requirements AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz
Maximum Power Consumption 90 W
Typical Power Consumption 36 W
Power Save Mode Less than 1.6 W
Power Management DVI DMPM, DisplayPort 1.1a
Sensor Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes CAL Switch
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 10.2 kg
Net Weight (Without Stand) 7.5 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R
FDA 510(k) Clearance Yes (for General Radiography)
Supplied Accessories (May vary by country. Please contact EIZO for details.) AC power cord, dual link signal cable (DVI-D - DVI-D), signal cable (DisplayPort - DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user's manual)
Warranty Five Years

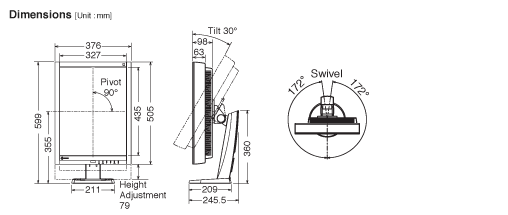

Dimension Drawing PDF
