Straight Arm


Del Medical Straight Arm




A universal imaging system featuring motorized vertical travel and a manually controlled swivel arm






Budget-saving Solution
The Universal Straight Arm is an economical and space-efficient X-ray system that can perform a comprehensive range of radiographic procedures. Its flexibility permits imaging of patients sitting or standing, as well as recumbent when optional mobile table is present.

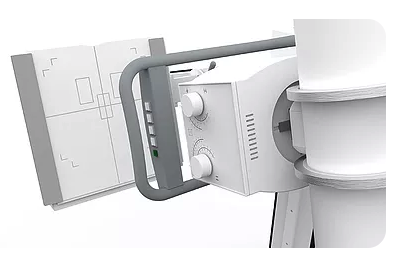

Del Medical Straight ArmAccurate and Safe
The system's counter-weighted design promotes smooth and precise adjustments with the use of just one hand. The Straight Arm operates on a single plane, meaning the X-ray tube and image receptor will always be perfectly aligned, regardless of positioning.

Safety enhancing electromagnetic brakes are applied to all system movements with exception of the tilting receptor tray, which engages at 0°.

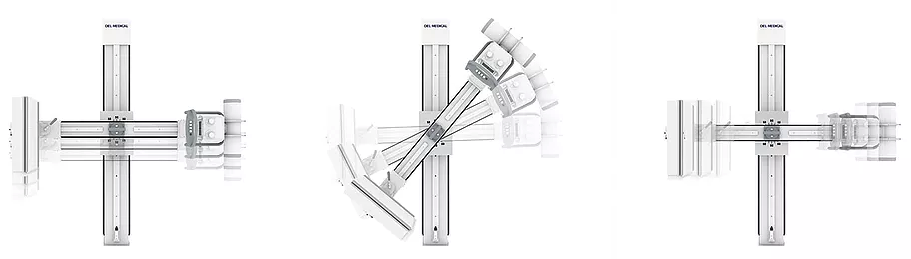

Flexible Movements
The expanded vertical lift from 17 to 64" (43 to 163 cm) removes the need for any additional equipment, such as a wall stand. Easily capture head to knee images of a standing patient without unnecessary repositioning. Its rotating arm can turn uninterrupted from 135° to -35° and its receptor tray can tilt over a ±45° range making nearly any view accessible. Source to image-receptor distance (SID) adjustments are motorized and can be changed to any preferred distance.
Del Medical Straight Arm

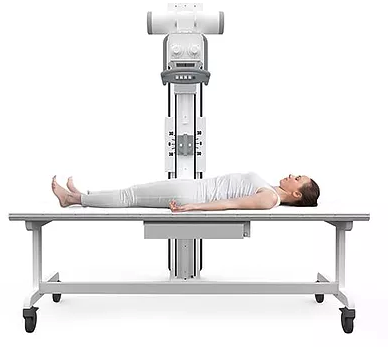

Del Medical Straight ArmOptional Mobile Table
The Straight Arm alone can perform a wide range of exams, but when combined with the MT500 mobile table, technologists have access to cross-table lateral and recumbent positioning. The table is light weight and easy to maneuver making it ideal for quick positioning.

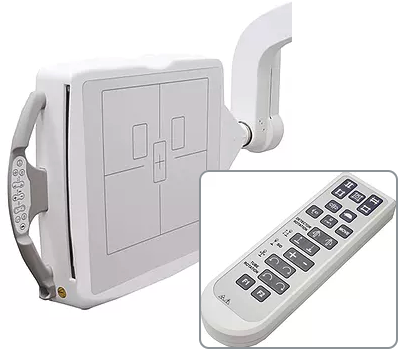

Del Medical U ArmConvenient User Controls
The UARM features flexible system controls located on the tube head, side of image receptor, and optional remote controller. This functionality eliminates the need to walk to a singular control location and enables hassle-free operation and increased workflow.










Safe and Stress-free
Electromagnetic brakes and intelligently placed anti-collision sensors reinforce user confidence and provide exceptional safety for patients and staff.

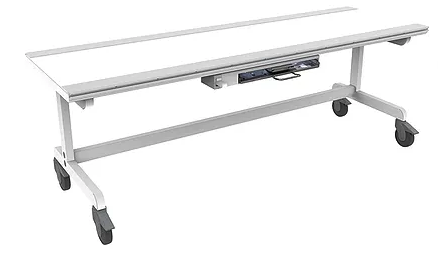

Del Medical U ArmOptional Mobile Table
The UARM alone can perform a wide range of exams, but when combined with the MT500 mobile table, technologists have access to cross-table lateral and recumbent positioning.The table is light weight and easy to maneuver making it ideal for quick positioning.










Specifications

Swivel range: 135° to -35°
Vertical travel: 16.5" (42 cm) to 64.2" (163 cm)
Bucky rotation: ±45°
SID adjustment: 39.4" (100 cm) to 78.7" (200 cm) (motorized)
Height: 88.4" (224.6 cm)
Width: 89" (226 cm)
Depth: 51.2" (130 cm)

MT500 Mobile Table

Table top length: 80" (203.2 cm)
Table top width: 26" (66.1 cm)
Table top height: 27.9" (70.9 cm)
Weight without cabinet: 164 lbs. (74 kg)
Weight with cabinet: 201 lbs. (91.2 kg)
Options: - Grid cabinet with tray
- 32" Table side patient handgrips
- Lateral cassette holder
- Compression band
