OTC18M

Del Medical OTC18M



Premium overhead ceiling mount with LCD touchscreen.










Superior Mobility

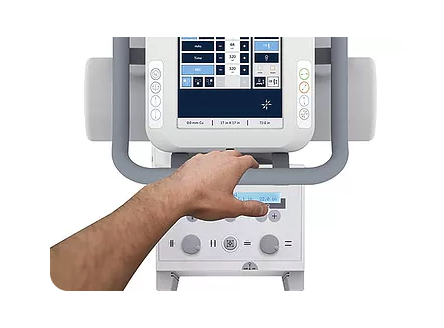

The OTC18M tube crane highlights an advanced, technologist-friendly 10.4" touchscreen console providing seamless system integration by displaying tube angulation, SID values, and generator control options. Color-coded movement identification buttons provide optimal precision when setting up views.

Peaceful and effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers exceptional vertical movement of 71” (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight bearing and recumbent table top exams.



Del Medical OTC18T

Intuitive Control

A conveniently placed all-lock release sensor is located just above the bottom section of the tube head handle. This sensor enables rapid manual positioning by allowing the user to simply grab the bottom handle to unlock the system and make swift readjustments.



Specifications

OTC18M Tube Crane

Vertical telescope travel range: 70.8" (180 cm) with minimum 32.7" (83 cm) focal spot floor distance with a 9' ceiling height
Longitudinal travel range: Standard 14' rail included, 136.2" min. (346 cm) With optional rail extensions: 219.9" max (558.5 cm)
Transverse travel range: Standard 10' Bridge with 9.8' (0.3 cm) transverse carriage: 86.6" min. (220 cm) With 13' bridge & 13.1' (0.4 cm) transverse carriage: 139.7" max. (355 cm)
Longitudinal detent positions: Configurable during installation
Tube rotation range (horizontal axis): -120°, +120°
Detent positions at -90°, 0°, +90°
Tube rotation range (vertical axis): -182°, +154°
Detent positions at -180°, -90°, 0°, +90°
Weight: Approximately 831 lbs. (377 kg) with tube & collimator
Power Requirements: 110/240 Vac. 50/60 Hz, 700 VA
