FMT18M System

Del Medical FMT18M System

Premium floor mounted system with LCD touchscreen

Intelligent and Reliable
The FMT18M Digital Radiographic System was designed with features proven to optimize workflow, patient care and technologist productivity. The floor mounted configuration makes it ideal for smaller imaging environments requiring low ceiling installations, such as urgent care and orthopedic facilities. FMT18M systems are built to withstand medium to high volume throughput.

Del Medical FMT18T System

Expert Precision

An advanced, 10.4" technologist-friendly touchscreen console provides large text readouts and integrated operation of the tube stand. Ergonomically placed movement identification buttons provide optimal accuracy when setting up views. Take advantage of extensive longitudinal and vertical movements, as well as a 180° rotating tube column enabling positioning for cross-table lateral exams.

Del Medical FMT18T

Intuitive Control

A conveniently placed all-locks release sensor is located just above the bottom section of the tube head handle. This sensor enables rapid manual positioning by allowing the user to simply grab the bottom handle to unlock the system and make swift readjustments.

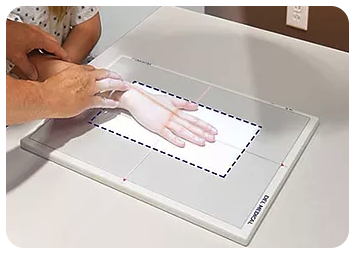

Del Medical FMT18TAuto-Collimation
Accelerates patient positioning and reduces radiation exposure by automatically selecting the proper field-of-view for each body part. This feature is available through the DelWorks DR acquisition software’s pre-programmed APR settings.

Del Medical FMT18T

Elevating Table

The durable EV800 elevating four-way float top table delivers outstanding safety and usability. Featuring an exclusive four-point lift system and exceptionally quiet motor-drive, its smooth, scratch resistant table top lowers to a height of just 22” to ensure stress-free patient transfers and adjustments. Offering a high patient weight capacity of up to 800lbs (363 kg), stable continuous movement is possible through conveniently placed recessed foot treadles and table-side controls, suitable for increasing technologist performance and satisfaction.

EV800 and Accessories

Del Medical FMT18TErgonomic Wall Stand
The reliable VS300 wall stand utilizes electromagnetic ‘fail safe’ locks to maintain operator confidence throughout the imaging procedure. Full receptor movement to the floor, patient-side handgrips and optional overhead handgrips promote efficient upright exams without placing unnecessary strain on the patient.

Designed for convenience, the VS300 technologist handgrip permits relaxed vertical travel by angling with the operator’s wrist as the image receptor is raised or lowered.


FMT18M Tube Stand

Minimum ceiling height: Minimum 87" (221 cm)
Column height: 85.5" (217 cm)
Vertical travel: 64.5" (164 cm) total
Floor to focal spot (with standard platform mount): Minimum 11" (28 cm), Maximum 75.5" (192 cm)
Longitudinal travel: 94" (239 cm)
Rail longitudinal length: 120" (305 cm)
Transverse travel: 11" (28 cm)
Cable support capacity: 88 lbs. (40 kg)
Tube stand weight: 460 lbs. (209 kg)
Platform assembly weight: 125 lbs. (57 kg) net
Column rotation: 180° where installation permits
Tube rotation: ±180° detents for lateral decubitus projections
Base assembly to rear wall: 8" (20.5 cm)

EV800 Elevating Table

Patient load capacity: 800 lbs. (363 kg)
Table base length: 53" (135 cm)
Table base width: 25" (64 cm)
Table top movement: Longitudinal, ± 21.25" (54 cm)
Transverse, ± 4.5" (11.4 cm)
Variable height: 22.25" (56.5 cm) to 34.25" (87 cm)
Bucky travel: ± 8.5" (22 cm)
Table top length: 86.5" (220 cm)
Table top width: 36" (91 cm)
Weight: 563 lbs. (256 kg)
Power requirements: 120 VAC or 230/240 VAC
Options: - 78" (198 cm) table top length
- 32" (81 cm) table top width
- Lateral cassette holder
- Table-side patient handgrips
- Rotating cassette tray

VS300 Tilting Wall Stand

Height: 84" (213.4 cm)
Depth: 13.4" (34 cm)
Receptor width: 24.6" (62.5 cm)
Receptor height: 26.5" (67.3 cm)
Weight (with receptor): 200 lbs. (91 kg)
Power requirements: 24 VDC, 1.25 max. momentary amps
Options: - Floor mount kit for freestanding version
- Wall mount bracket extension kit
- Rotating cassette tray
