FDR ES
Essential DR: Affordability without compromise.

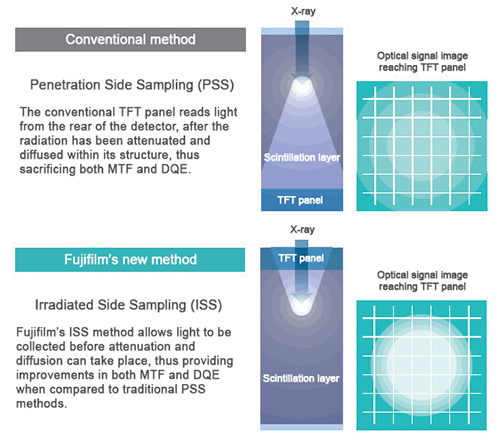

FDR ES detectors feature 150 micron pixel pitch and a wide 16-bit dynamic range, as well as
Fujifilm's ISS (Irradiated Side Sampling) which provides ultra-sharp imaging with advanced dose
efficiency. This exclusive design captures the x-ray image from the incident/patient side of the
detector, in contrast to traditional designs which capture the image below the scintillator layer.
The result is a reduction in the distance for light to spread, allowing the image to be captured
where it’s sharper and stronger as it was always intended.
Features
- Rounded edges make FDR ES easy to pick up off flat surfaces.
- Carbon fiber casings make FDR ES detectors durable and lightweight, with 14x17'' weighing only
6.4 lbs.
- Sleep mode extends battery life for less frequent battery changes.
- Built to protect against incidental sprayed liquid (IPX-3 rating).
- Fujifilm detector innovations improve image quality and dose efficiency through advanced
processing combined with patented ISS technology and improved circuitry performance.
*Based on residual bacteria counts
These lightweight, small format 24x30cm detectors ideal for extremity imaging
positioned outside of the Bucky.
Model |
FDR ES C24 |
Size |
24x30cm |
External (inches) |
13 x 10.6 x 0.6 |
Connection |
Tethered / Wireless |
Scintillator |
Csl |
Weight (lbs.) |
3.5 |
Pixel Matrix |
1536 x 1920 |
Pixel Pitch |
150µ |
Cycle Time (sec.) |
Less than 9 |
Image Display (sec.) |
1-2 |
These lightweight, cassette-sized 14x17 detectors are available with a detachable
cord and the option of going wireless for added positioning versatility.
Model |
FDR ES C35 |
Size |
14x17 |
External (inches) |
15 x 18 x 0.59 |
Connection |
Tethered / Wireless |
Scintillator |
Csl |
Weight (lbs.) |
6.4 |
Pixel Matrix |
2836 x 2836 |
Pixel Pitch |
150µ |
Cycle Time (sec.) |
Less than 10.5 |
Image Display (sec.) |
1-2 |
These full sized 17x17 detectors are available with a detachable cord and an option
to go wireless, making them ideal for dedicated use in an upright Bucky or in-table
solution.
Model |
FDR ES C43 |
Size |
17x17 |
External (inches) |
18 x 18 x 0.59 |
Connection |
Tethered / Wireless |
Scintillator |
Csl |
Weight (lbs.) |
8.2 |
Pixel Matrix |
2836 x 2832 |
Pixel Pitch |
150µ |
Cycle Time (sec.) |
Less than 13 |
Image Display (sec.) |
1-2 |
These lightweight, cassette-sized 14x17 detectors are available with a detachable
cord and the option of going wireless for added positioning versatility.
Model |
FDR ES G35 |
Size |
14x17 |
External (inches) |
15 x 18 x 0.59 |
Connection |
Tethered / Wireless |
Scintillator |
GOS |
Weight (lbs.) |
6.4 |
Pixel Matrix |
2836 x 2836 |
Pixel Pitch |
150µ |
Cycle Time (sec.) |
Less than 10.5 |
Image Display (sec.) |
1-2 |
These full sized 17x17 detectors are available with a detachable cord and an option
to go wireless, making them ideal for dedicated use in an upright Bucky or in-table
solution.
Model |
FDR ES G43 |
Size |
17x17 |
External (inches) |
18 x 18 x 0.59 |
Connection |
Tethered / Wireless |
Scintillator |
GOS |
Weight (lbs.) |
8.2 |
Pixel Matrix |
2836 x 2832 |
Pixel Pitch |
150µ |
Cycle Time (sec.) |
Less than 13 |
Image Display (sec.) |
1-2 |
