U-Arm


Del Medical U-Arm


Fully motorized U-arm system with intelligent pre-programmed positioning










Motorized Automation
The UARM is a fully motorized radiographic system designed to automate the imaging process with pre-programmed positioning and full generator integration that can be conveniently controlled from its technologist-friendly touchscreen console.



Del Medical U ArmPerfect Alignment, Everytime

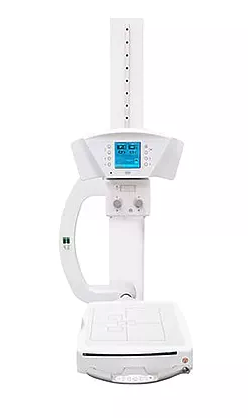

Featuring a linear U-arm, the system tube and image receptor are always perfectly aligned regardless of U-arm arm position.
This is especially useful when performing auto-stitch applications focusing on the legs and back.














Del Medical U Arm
Versatile Examinations

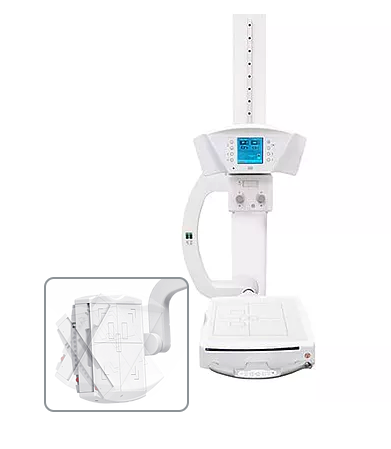

Developed to efficiently perform a wide variety of exams and procedures, its automated swivel arm and rotating image receptor can accommodate a diverse range of positions for patients of all sizes. Whether sitting, standing or lying down, the UARM provides extensive vertical and SID travel perfect for comprehensive head-to-toe imaging.












Del Medical U ArmPre-Programmed Positioning

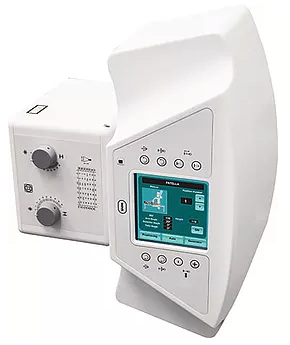

The UARM can store up to 25 pre-programmed positions allowing for fast setup of the most frequently used applications. These positions can be easily selected from the tube mounted touchscreen.












Del Medical U ArmConvenient User Controls
The UARM features flexible system controls located on the tube head, side of image receptor, and optional remote controller. This functionality eliminates the need to walk to a singular control location and enables hassle-free operation and increased workflow.










Safe and Stress-free
Electromagnetic brakes and intelligently placed anti-collision sensors reinforce user confidence and provide exceptional safety for patients and staff.



Del Medical U ArmOptional Mobile Table
The UARM alone can perform a wide range of exams, but when combined with the MT500 mobile table, technologists have access to cross-table lateral and recumbent positioning.The table is light weight and easy to maneuver making it ideal for quick positioning.










Specifications

Column height: 91" (231 cm)
Minimum focal-spot-to floor distance (in the 90º position): 15.3" (40 cm)
Maximum focal-spot-to floor distance (in the 90º position): 66.5" (169 cm)
Minimum receptor-surface-to floor distance (in the 0º position): 22" (56 cm)
Maximum receptor-surface-to floor distance (in the 0º position): 41.34" (105 cm)
Vertical movement speed: 40 mm/s to 150 mm/s
Arm rotation: -30°/+120°
Rotation speed 3°— 10°/s: 2°/s — 10°/s
Motorized SID travel: 39.4” (100 cm) to 70.87” (180 cm)
Motorized SID travel speed: 0.4 in/s to 5.1 in/s
Receptor rotation angulation: ±45°
Receptor rotation speed: 1°/s to 3°/s
Arm weight: 719 lbs. (326 kg)
Power Requirements: 230VAC

MT500 Mobile Table

Table top length: 80" (203.2 cm)
Table top width: 26" (66.1 cm)
Table top height: 27.9" (70.9 cm)
Weight without cabinet: 164 lbs. (74 kg)
Weight with cabinet: 201 lbs. (91.2 kg)
Options: - Grid cabinet with tray
- 32" Table side patient handgrips
- Lateral cassette holder
- Compression band
